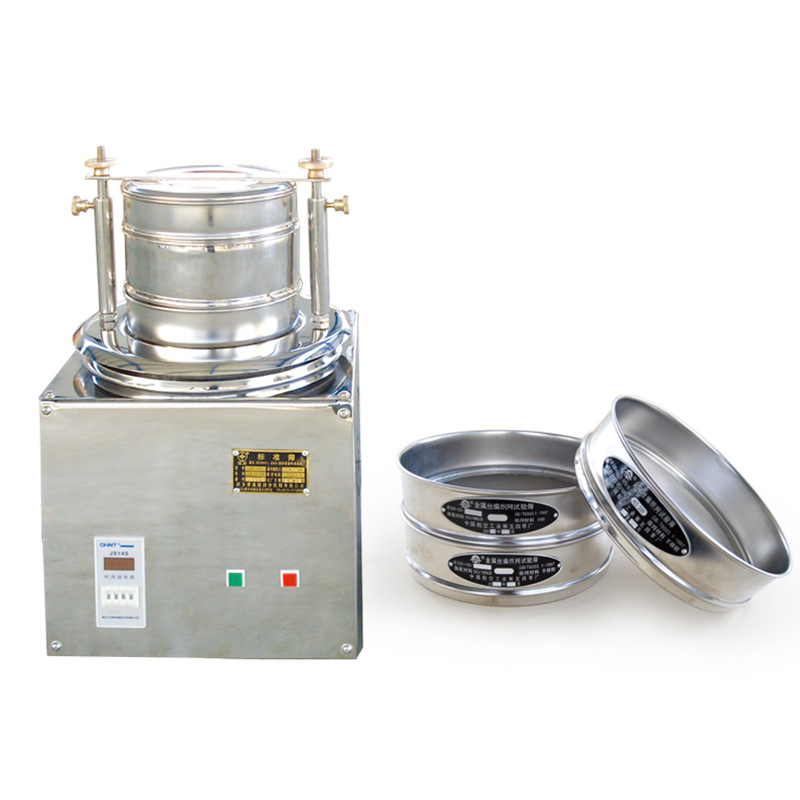

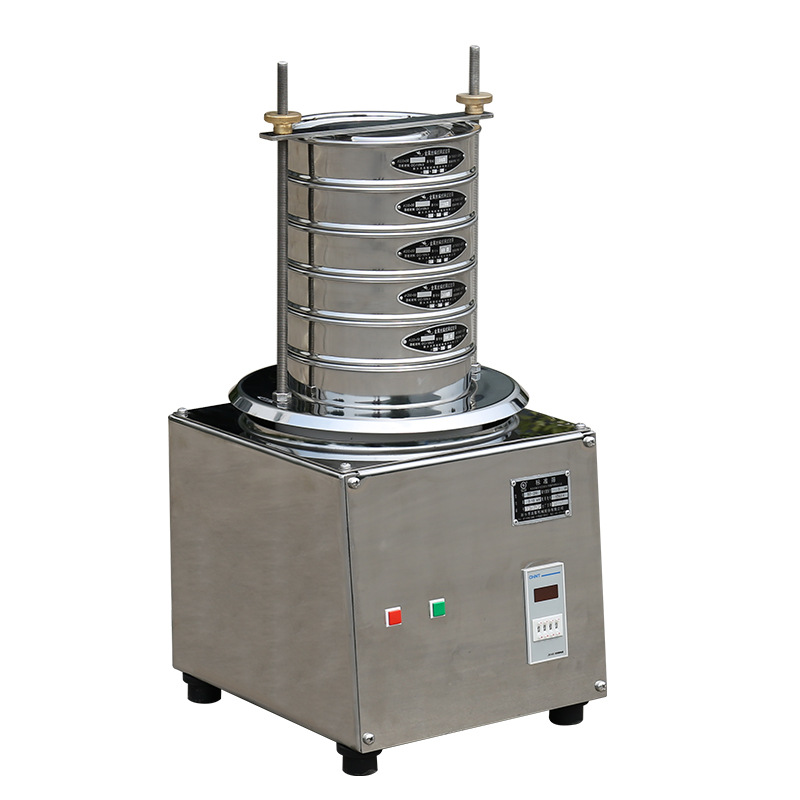

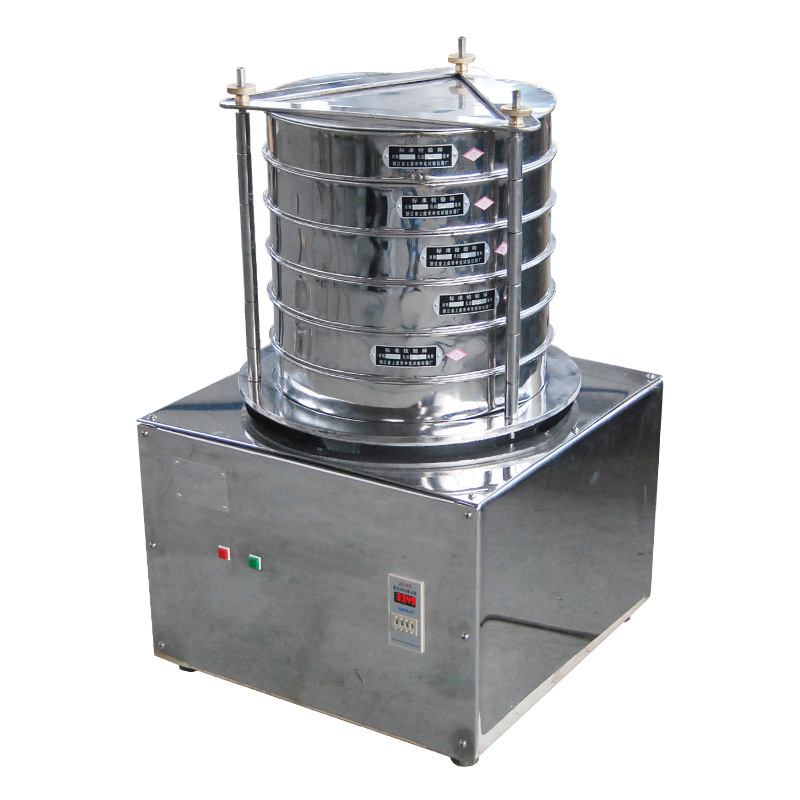

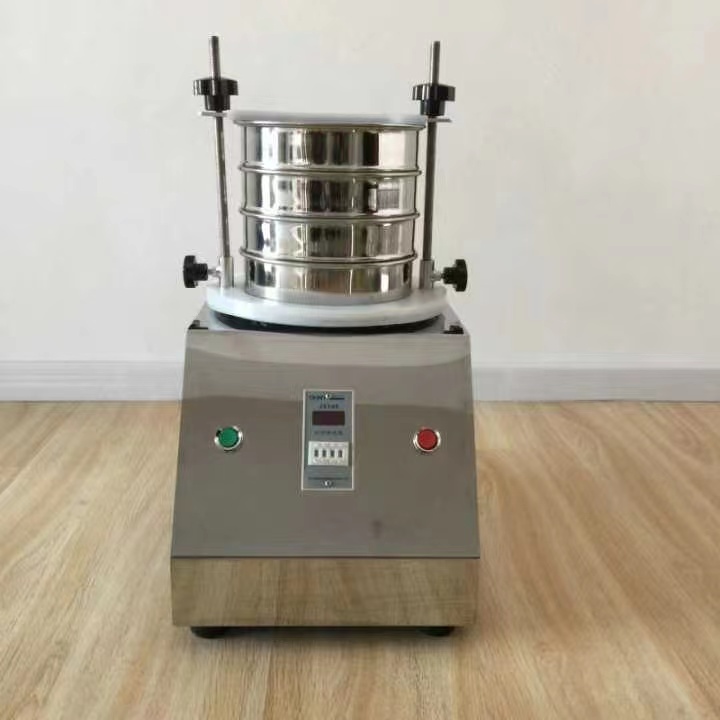

Laboratory test sieve

Description

Laboratory test sieve is a regular automatic shutdown, guarantee the test repeatability and fully functional operation simple mechanical analysis apparatus. Can be a kind of granular material precision at the same time to separate 2~8 period of particles. Can be used for slurry fineness and content of impurities of the analysis,the noise is small,light weight,the platform operation without fixed.

Inquire Now WhatsApp

Products Center

Tel: +8613912907037
Email: selenaz@jsozeo.com
WhatsApp: +8613912907037
Address:No.6 Longzhong Road, Luhe District, Nanjing, Jiangsu, China, 211500

Product Introduction

Feature

1) Auto power -off, simple operation.
2) Light weight, small size, low noise, easy moving.
3) Time setting makes sure the accuracy of testing data.

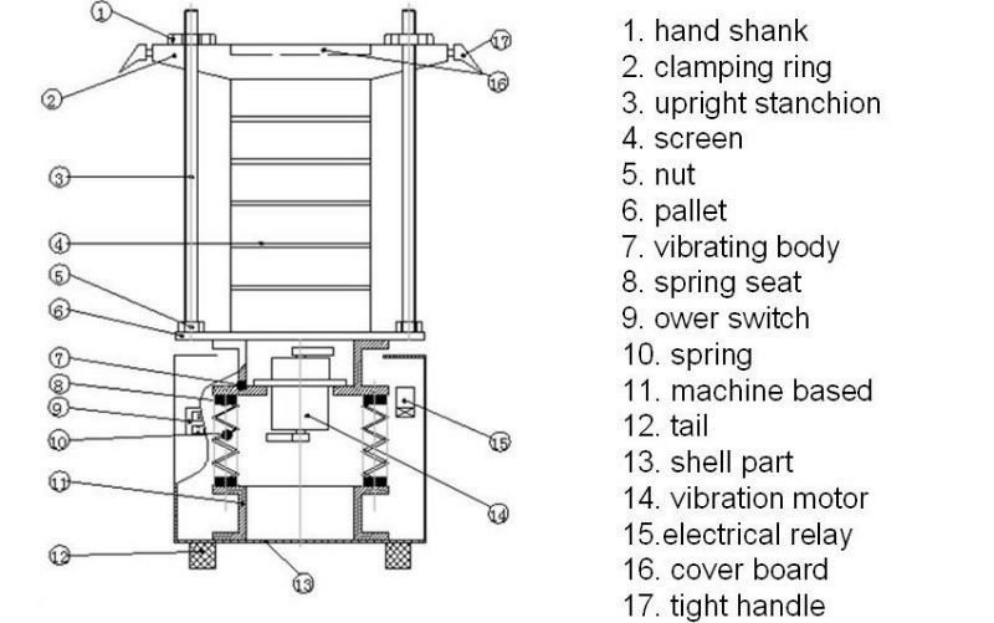

Construction

Application

Parameter

No.	Item		Data	Unit
1	Sieves		1-8	Layer
2	Diameter		200	mm
3	Material size		0.038-3	mm
4	Noise		≦50	db
5	Inventory rating		≦200	G
6	Vibration amplitude		0-3	mm
7	Vibration motor	Voltage	220-240	V
		Rotate speed	1440	Rpm
		Power	0.125	KW
8	Overall dimension(lengthwidthheight)		360×300×470	mm
9	Net weight		30	kg
10	Gross volume		0.5	CBM
11	Gross weight		39	kg
