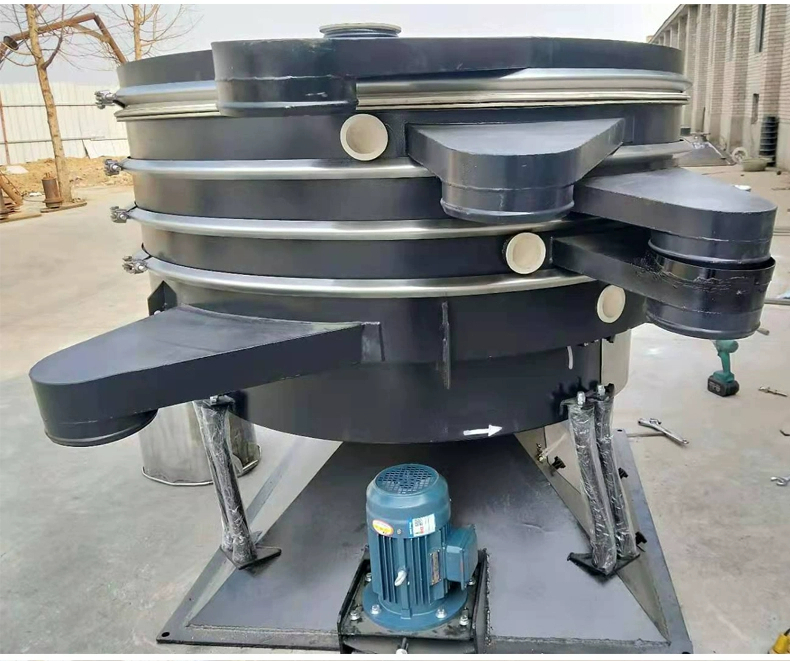

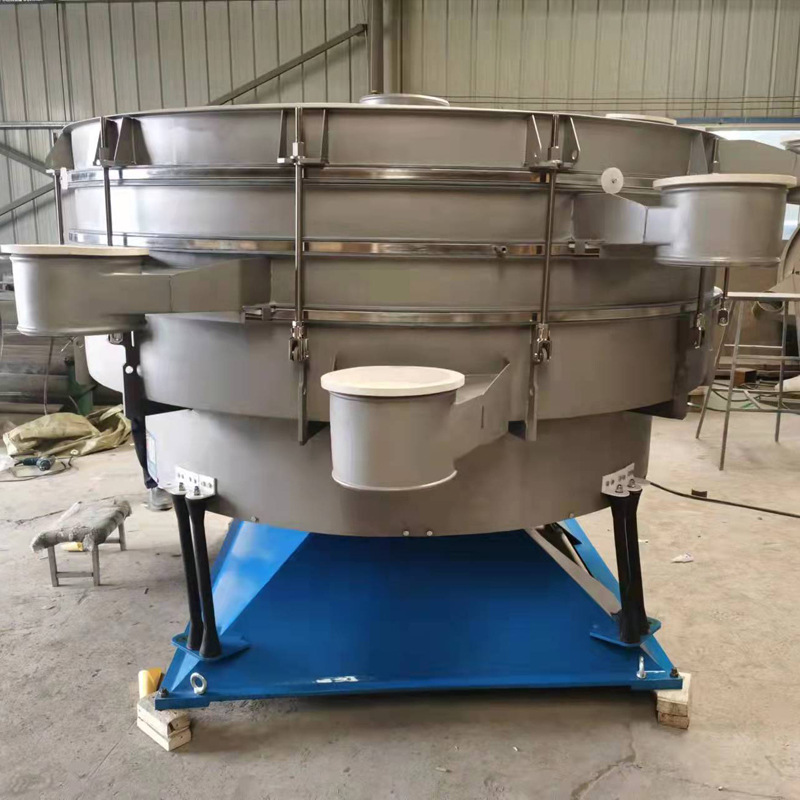

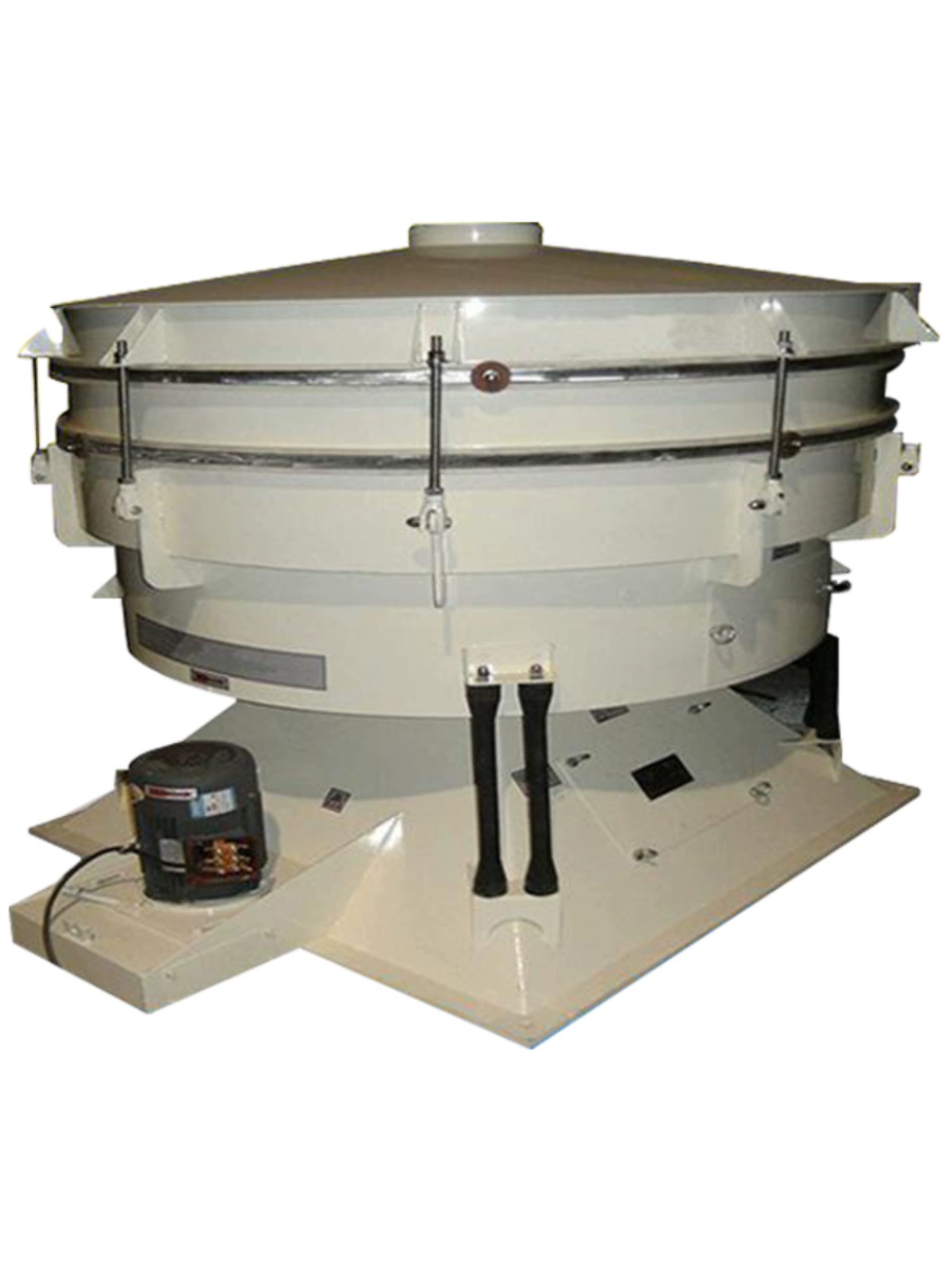

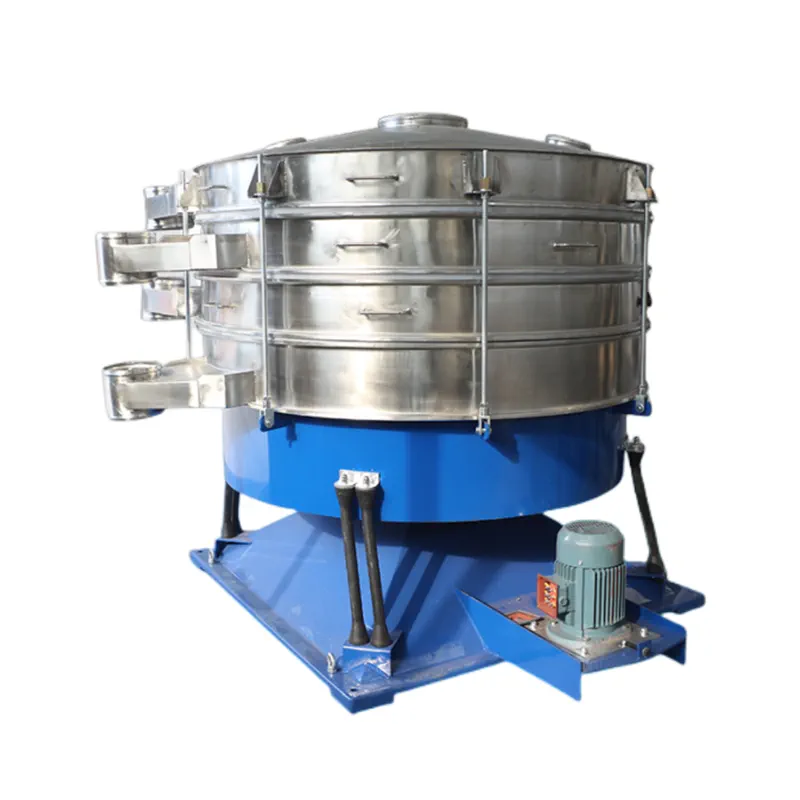

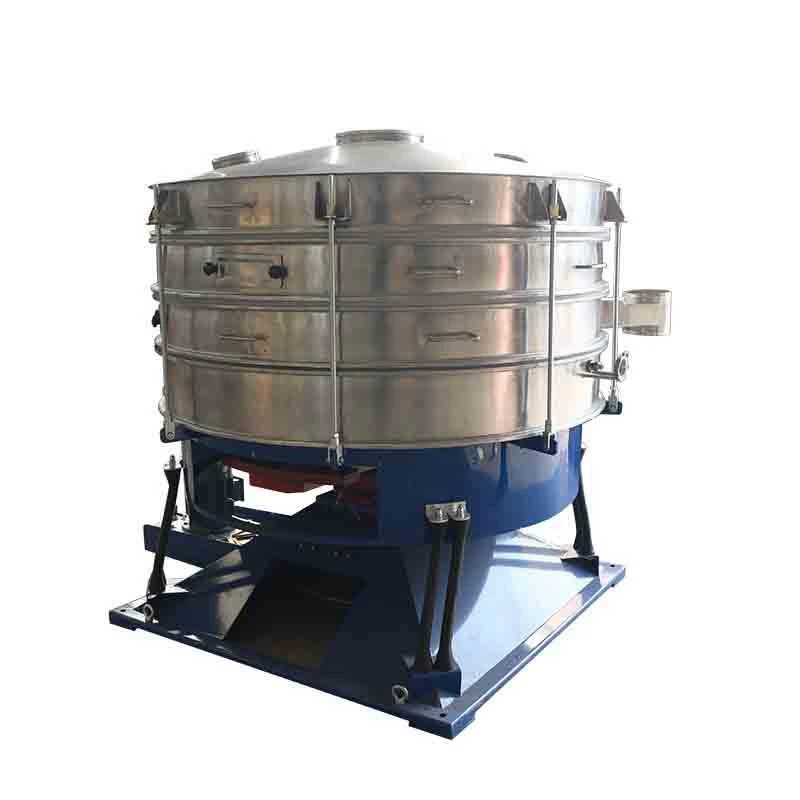

Tumbler Swing Screen

Description

YBS series tumbler screening machine is a kind of inertial equipment with mature technology and classical application.Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler swing screen have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen. The Tumbler screening machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving. It is widely used in mine, building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industry.

Inquire Now WhatsApp

Products Center

Tel: +8613912907037
Email: selenaz@jsozeo.com
WhatsApp: +8613912907037
Address:No.6 Longzhong Road, Luhe District, Nanjing, Jiangsu, China, 211500

Product Introduction

Feature

High effect screening:5 times output per until arear compared with vibrating screen;Up to 6 grade separation and 90%-99% screening precision.

Artful design: optimizing gravity isostasy; totally ciosed design, safe operation; low noise under 75db.
Using silica ball and rubber ball, ultrasonic and other high effect screen cleaning device, screen won’t clog.

Fructify and durability: accelerated speed is four or five times slower than vibrating screen, which increases thr serve life and decreases the maintenance of screening parts.

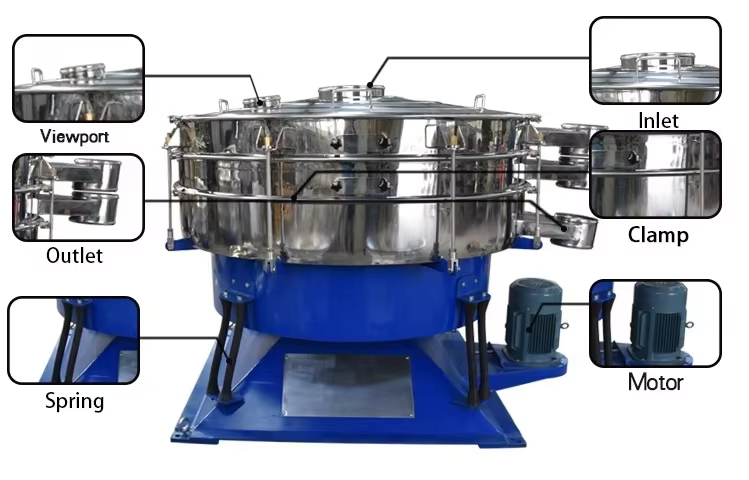

Construction

Application

Parameter

Model	Screen mesh area (m²)	Frequency (r/min)	Screen slope(゜)	Granularity size(mm)	Amplitude(mm)	Power（kw）
YBS-600	0.28	220-280	0-10	≤100	20-70	0.75
YBS-1000	0.66	220-280	0-10	≤100	20-70	1.5
YBS-1200	0.98	220-280	0-10	≤100	20-70	2.2
YBS-1500	1.67	220-280	0-10	≤100	20-70	3
YBS-1800	2.37	220-280	0-10	≤100	20-70	4
YBS-2000	2.89	220-280	0-10	≤100	20-70	4
YBS-2600	5.3	220-280	0-10	≤100	20-70	5.5
