High-performance Single Screw Loss-In-Weight Feeder Granular Material Feeder for Extrusion

Description

The Loss-in-Weight Feeder is a precision gravimetric dosing system within the family of advanced gravimetric feeders, designed for continuous, stable, and highly accurate feeding of powders and particle feed. As a high-performance loss-in-weight feeder, this loss-in-weight design uses real-time weight control to ensure consistent material flow essential for modern industrial production.The single screw loss-in-weight feeder is a continuous device that can continuously adjust the conveying rate of materials and measure the conveying volume.It can be used for continuous conveying of powder, granules.The Single Screw Type loss-in-weight feeder is specially designed for pellets and free-flowing materials like plastic pellets, crushed stone, flake activated carbon, and so on. For large flow rate range requirements, a single screw type loss-in-weight feeder would be a good choice.

Inquire Now WhatsApp

Products Center

Tel: +8613912907037
Email: selenaz@jsozeo.com
WhatsApp: +8613912907037
Address:No.6 Longzhong Road, Luhe District, Nanjing, Jiangsu, China, 211500

Product Introduction

Feature

Adopting double feedback (servo + PID) and double closed-loop (servo + flow tracking) feeding technology to ensure feeding accuracy.

Toledo or HBM load cell is used, combined with Siemens PLC, the communication is stable and reliable, with strong anti-interference ability.

Wide range of screws to cope with materials with different properties.

Quick-disassembly structure design, easy to clean and maintain.

Calibration-free for changing material.

The stirring speed can be adjusted according to actual demand.

7 inches color touch screen

The screw feeder is available for hollow screw and solid screw.

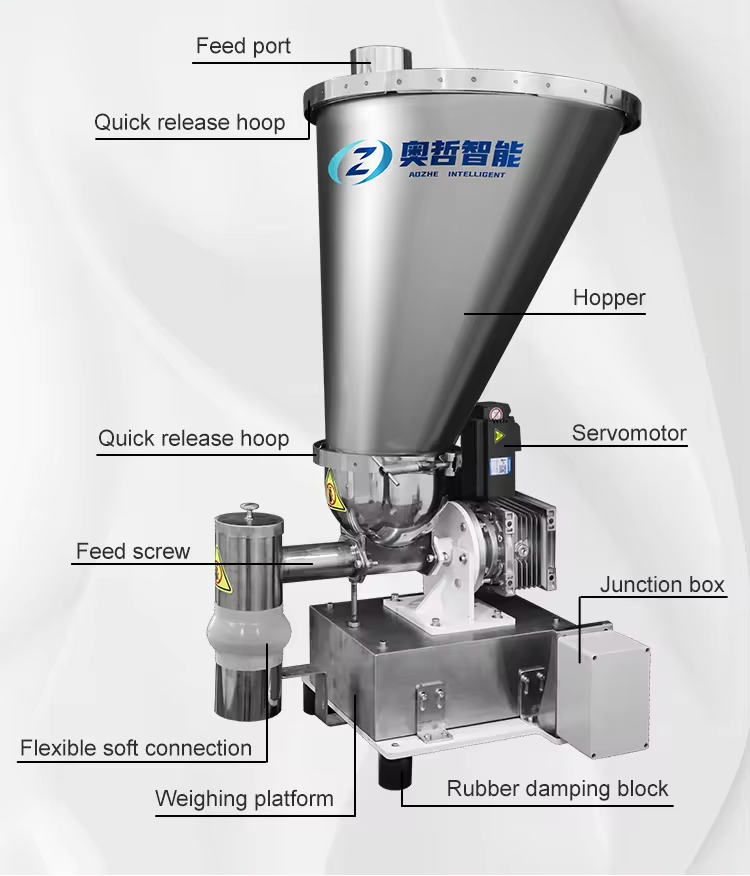

Construction

Video

Application

Pellets, free-flowing material
It can be used in pellets or free-flowing materials such as plastic pellet, crushed stone, flake activated carbon, and so on.

Parameter

Loss in weight feeder—Single Screw
Model	Flow range(kg/h)	Motor	Sensor range	Hopper size
S26	1-5	0.4kw servo	50kg	10L
S46	5-120	0.4kw servo	150kg	40/80L
S70	80-800	0.75kw servo	200kg	80/120L
S100	400-1600	1kw servo	250kg	150L

Solid Loss-in-Weight Weigher Selection Guide

Determine the screw type (“√” indicates recommended, “×” indicates not suitable, “O” indicates acceptable)

Material Type / Screw Type	Single Screw	Twin Screw
Small Granules (diameter < 3 mm)	√	O
Large Granules (diameter > 3 mm)	√	×
Powder	O	√
Glass Fiber	O	√
Mixture	√	O
Flakes / Sheet	√	×
