      High-accuracy Double Screw Loss-In-Weight Feeder Additive Feeder for Extrusion

      Description

      The twin screw loss-in-weight feeder is a continuous device that can continuously adjust the conveying rate of materials and measure the conveying volume.It can be used for continuous conveying of powder, balls, flakes, granules and all kinds of short fiber materials.The gravimetric feeder has double servo motor drive,the frequency of stirring can be adjusted at any time.For material with difficult flow,the screw feeder prevents bridging and enhances feeding accuracy and stability.This type of feeder is specially designed for powers or materials with bad fluidity. To meet different requirements, there are several types of screws available.
      Inquire Now WhatsApp

    Products Center

    Contact Us

    Product Introduction

    Feature

    • Adopting double feedback (servo + PID) and double closed-loop (servo + flow tracking) feeding technology to ensure feeding accuracy.
    • The communication is stable and reliable, with strong anti-interference ability.
    • Wide range of screws to cope with materials with different properties.
    • Quick-disassembly structure design, easy to clean and maintain.
    • Vertical mixing is added on the basis of horizontal mixing to effectively improve the problem of powder bridging.
    • 7 inches color touch screen.
    • Fully sealed design, anti-interference.
    • Deigned for powers or materials with bad fluidity.

    Construction

    Video

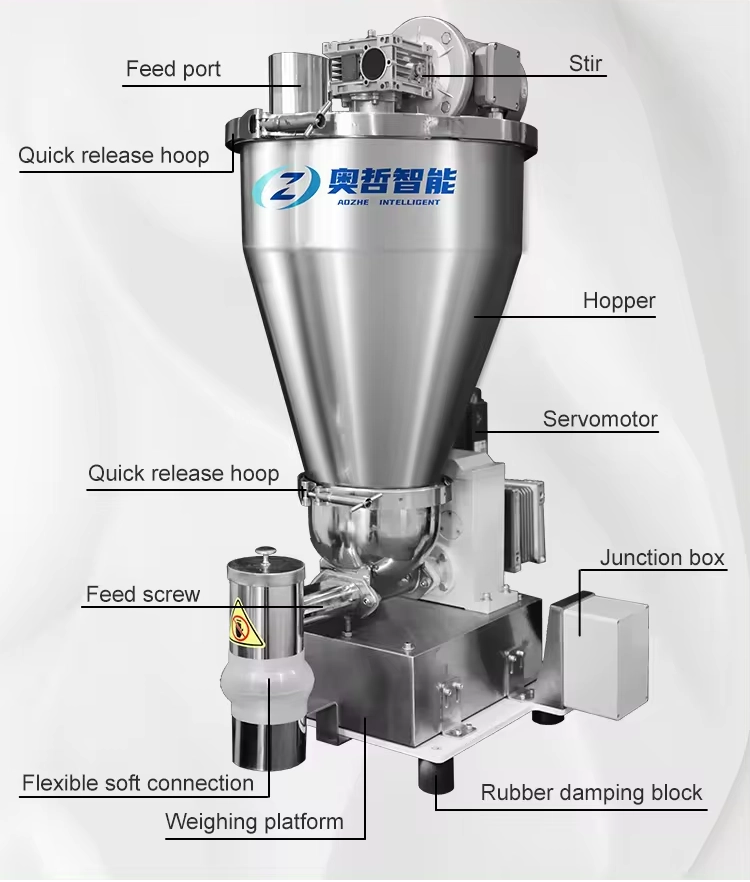

    twin screw loss-in-weight feeder detail

    Application

    Powders, Pellets
    It can be used in the granular or bad-flowing powdered materials such as toner or additives.

    Parameter

    Loss in weight feeder—Double Screw
    ModelFlow range(kg/h)MotorSensor rangeHopper size
    T282-1200.75kw servo150kg40/80L
    T3850-6001kw servo200kg80/120L
    T46300-15001.5kw servo250kg150L

    Solid Loss-in-Weight Weigher Selection Guide

    Determine the screw type (“√” indicates recommended, “×” indicates not suitable, “O” indicates acceptable)

    Material Type / Screw TypeSingle ScrewTwin Screw
    Small Granules (diameter < 3 mm)√O
    Large Granules (diameter > 3 mm)√×
    PowderO√
    Glass FiberO√
    Mixture√O
    Flakes / Sheet√×
