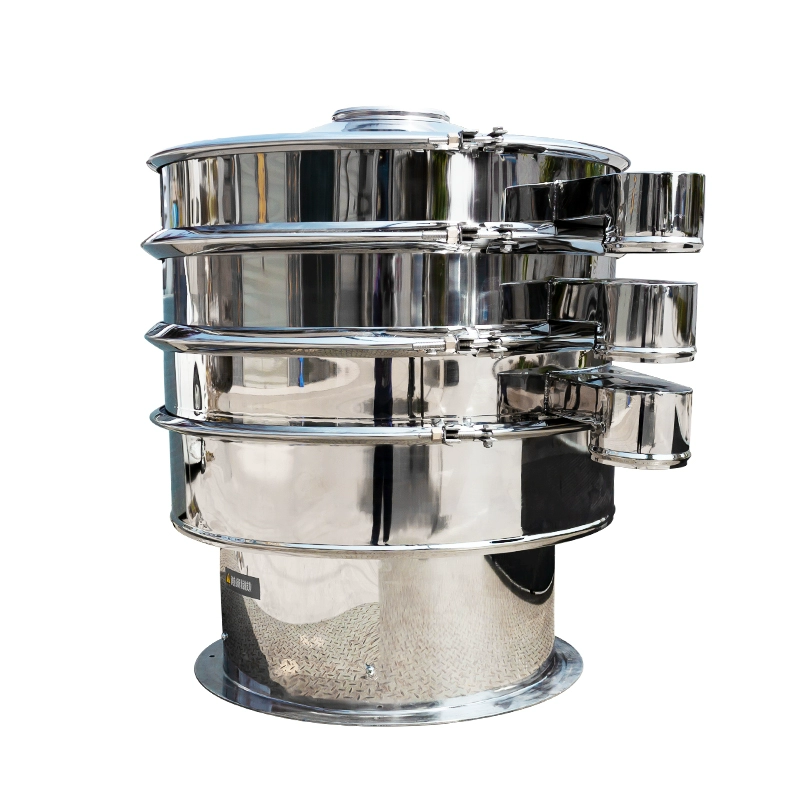

Rotary Vibrating Screen

Description

YZS Rotary Vibrating Screen is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.The direction of outlet port can be changed within 360 degrees.We can provide customized service according to customers' requirements.When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.

Inquire Now WhatsApp

Products Center

Tel: +8613912907037
Email: selenaz@jsozeo.com
WhatsApp: +8613912907037
Address:No.6 Longzhong Road, Luhe District, Nanjing, Jiangsu, China, 211500

Product Introduction

Feature

High-Power Motor: Efficiently processes cassava powder with 1.5kw power.

Customizable Mesh Size: Offers various mesh sizes from 0-200 mesh for precise sieving.

Robust Design: Solid screen frame and food-grade materials ensure durability and hygiene.

Flexible Input Design: Customizable input options for optimal working efficiency.

Comprehensive Quality Control: Strict inspection procedures ensure product reliability.

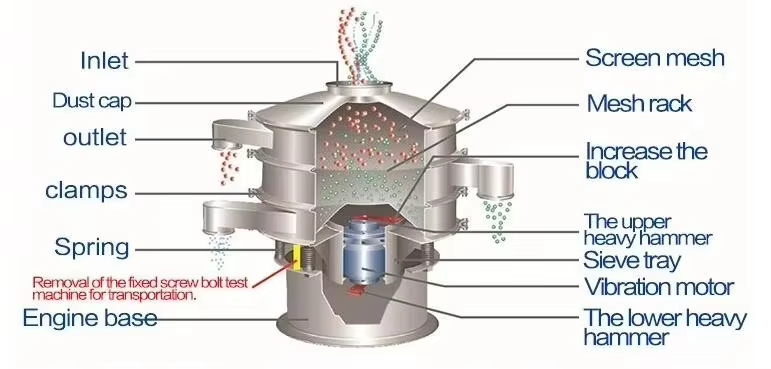

Construction

Application

Parameter

Model	Diameter	Mesh area	Mesh size	Layers	Vibration motor
	(mm)	Per deck(m2)	(mesh)		(kw)
YZS-400	Ø340	0.09	2-500	1-5	0.25
YZS-600	Ø540	0.23			0.55
YZS-800	Ø740	0.43			0.75
YZS-1000	Ø900	0.66			1.1
YZS-1200	Ø1100	1			1.5
YZS-1500	Ø1400	1.58			2
YZS-1800	Ø1700	2.32			2.2
YZS-2000	Ø1920	2.8			2.2
