Horizontal Ribbon Mixer

Description

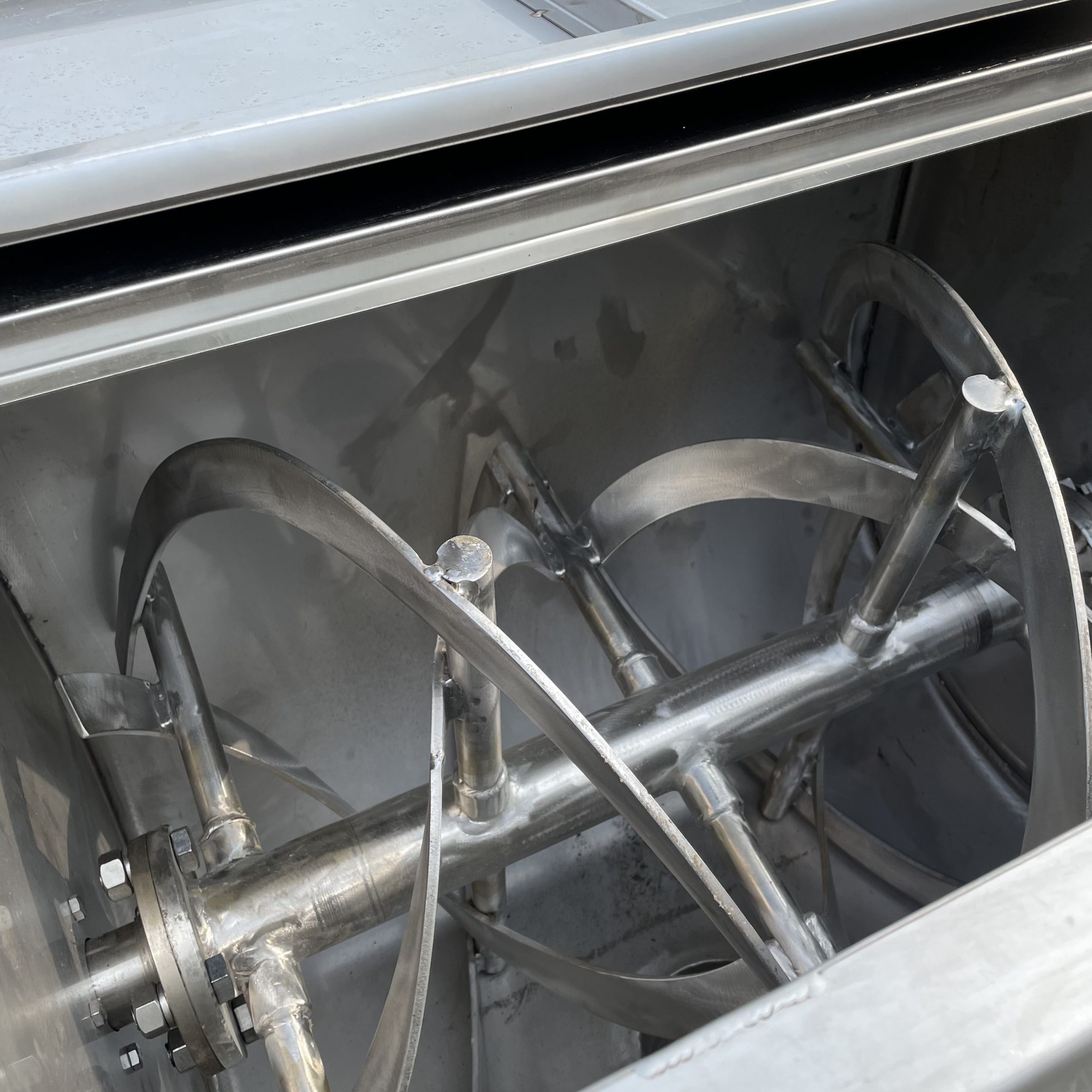

The horizontal ribbon mixer is a common industrial mixing equipment. The material has both circular and axial movements under the action of the paddle. According to the movement state of the material, it generates convection mixing, shear mixing and diffusion mixing. Through high-speed rotation, the material agglomerates can be dispersed, achieving ideal mixing effect. The horizontal ribbon mixer is used in a variety of fields, such as the manufacture of chemicals, the food industry and construction materials. It can mix various powders, granules and other materials. It is not only suitable for small batch production and experimental research, but also can be integrated with other production line equipment to form an automated production process and improve production efficiency and output.The working principle of the ribbon mixer is to transport the material from one end of the mixing tank to the other end through the rotation of the spiral blade, while cutting and turning the material along the axial and circumferential direction of the tank. This shearing and flipping motion makes the material fully mixed and evenly distributed in the mixing tank.

Inquire Now WhatsApp

Products Center

Tel: +8613912907037
Email: selenaz@jsozeo.com
WhatsApp: +8613912907037
Address:No.6 Longzhong Road, Luhe District, Nanjing, Jiangsu, China, 211500

Product Introduction

Feature

(1) Uniform mixing: The rotating motion of the spiral ribbon ensures that the materials are evenly distributed and fully mixed in the mixing tank, improving the mixing quality and consistency. (2) Efficient production: The ribbon mixer has high mixing efficiency and production capacity, and can meet the needs of large-scale production or small-scale laboratory use. (3) Save time and effort: The automated feeding and discharging devices reduce manual operations, improve work efficiency, and reduce labor costs. (4) Stability and reliability: The ribbon mixer has a solid structure, stable and reliable operation, and is suitable for production environments with long-term continuous operation.

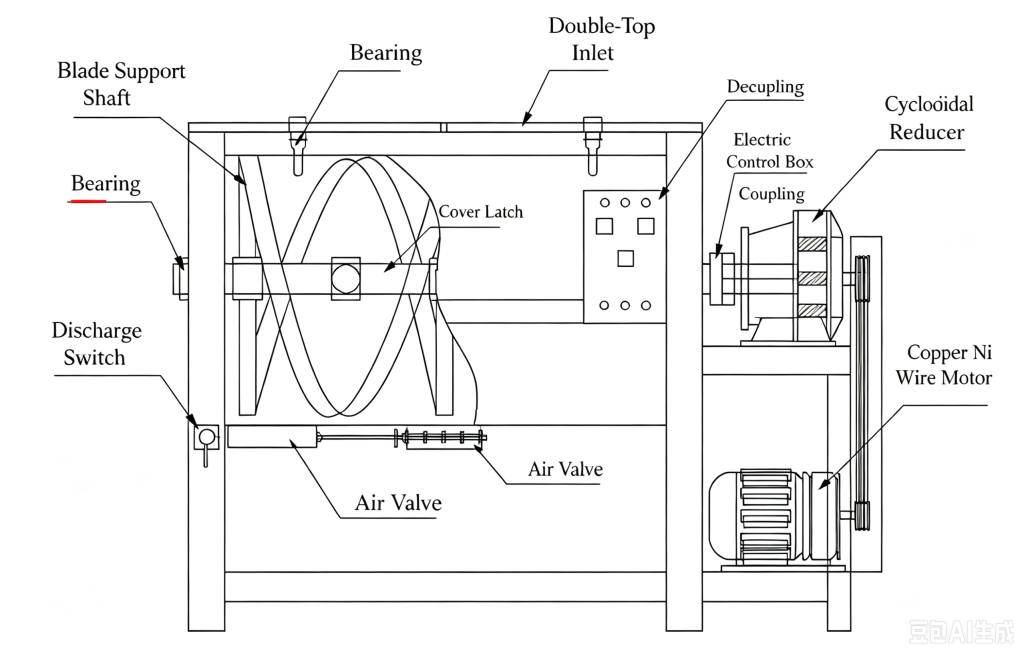

Construction

Application

Parameter

MODEL	Effective Volume	POWER(KW)	LWH(mm)	WEIGHT(KG)
OZ-W200	400L	4	14008001500	400
OZ-W300	600L	5.5	16008501600	500
OZ-W500	1000L	5.5	200010001800	700
OZ-W1000	2000L	7.5	230013002200	1700
OZ-W1500	3000L	11	230013002300	2400
OZ-W2000	4000L	15	280014002400	2600
OZ-W3000	6000L	22	420015002600	3900
